NASA has closed the book on one of the most closely watched engineering questions of the Artemis era, confirming that the Orion spacecraft’s heat shield performed as expected during the crewed Artemis II mission’s blistering reentry — and that the thermal protection system came home far less scarred than the version that flew four years earlier.

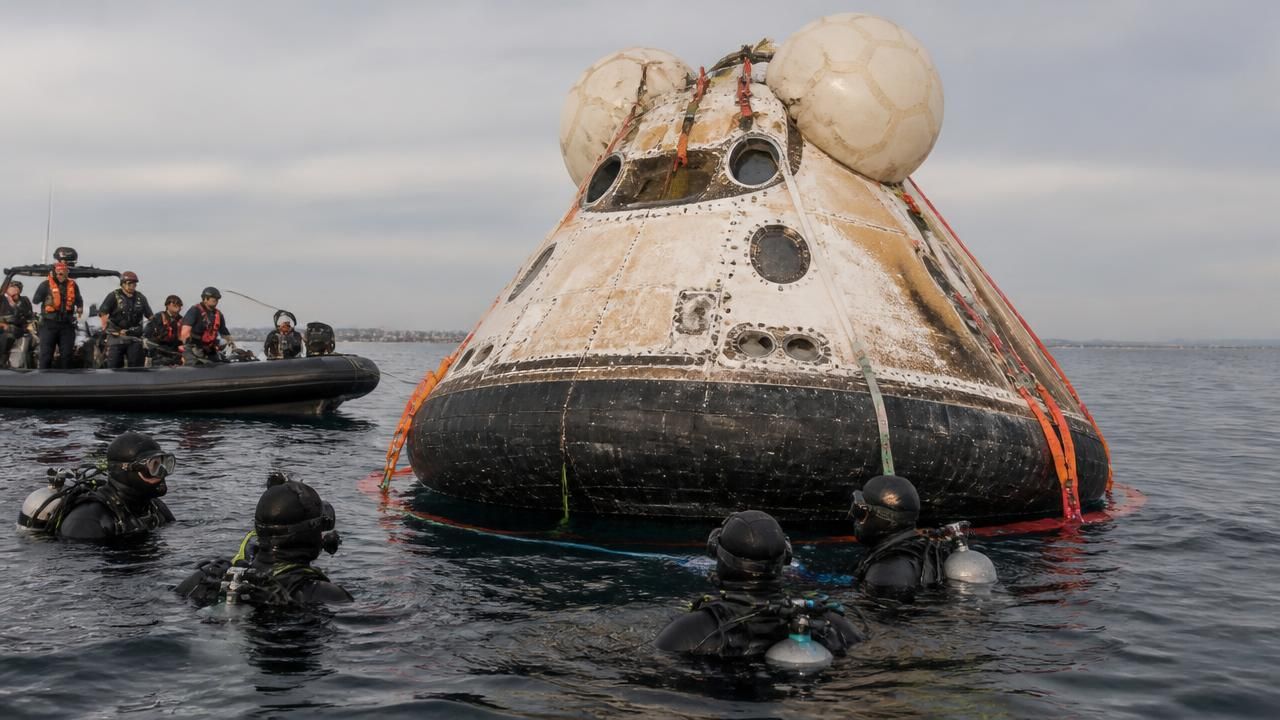

The verdict followed months of forensic analysis set in motion on April 10, 2026, when Artemis II splashed down and U.S. Navy divers slipped beneath the bobbing capsule to photograph its underside. Those ethereal underwater images, captured minutes after landing, became the first hard evidence of how the ablative shield had withstood the roughly 5,000-degree Fahrenheit plasma of a lunar-return reentry. The imagery was striking enough that it circulated widely within hours, prompting Yahoo and other outlets to describe the “ghostly” photo as a critical source of vital data for the agency.

A shield with a fraction of the damage

The headline number emerging from the analysis is dramatically better than the one that haunted Artemis I. The Artemis II heat shield came back with nine char-loss spots, down from 103 recorded on the uncrewed Artemis I flight in 2022. The comparison, reported by MSN, the Eastern Herald, and WESH — which noted the splashdown occurred near San Diego — represented the clearest signal yet that NASA’s corrective work on the Avcoat ablative material paid off.

Char loss refers to the shedding of the spacecraft’s outer protective layer as it burns away, carrying heat away from the crew cabin beneath. During Artemis I, inspectors found that the shield had lost more material than predicted, and in a pattern that engineers had not fully modeled — jagged cavities rather than a smooth, even char. The anomaly triggered an intensive investigation, delayed the first crewed flight, and prompted NASA to adjust the planned reentry trajectory for Artemis II to reduce the duration of the highest-heat phase.

This time, the outcome was unambiguous. In a statement accompanying the released imagery, NASA said its post-flight assessment “confirmed that the heat shield performed as expected” and safeguarded both the crew and Orion’s internal systems during descent.

“This rigorous analysis confirmed that the heat shield performed as expected.” — NASA

How the story was framed

The coverage divided into several distinct framings, reflecting how different audiences consumed the news.

  • The agency’s own account, echoed by Mirage News and Phys.org, emphasized process and rigor: the underwater documentation by Navy divers, the months of measurement, and the methodical confirmation that the thermal protection system met its design intent.
  • Data-driven comparison stories from MSN, the Eastern Herald, and WESH led with the 9-versus-103 statistic as the most legible proof of improvement.
  • Imagery-first outlets such as Yahoo foregrounded the haunting photograph of the shield suspended in blue water, treating it as both a visual marvel and a data artifact.
  • Schedule-focused reporting from the Orlando Sentinel framed the finding around what comes next: NASA’s assertion that the heat shield damage should not slow Artemis III planning.
  • Skeptical voices, including Rolling Out, struck a note of caution — reporting that the shield had been cleared but that questions still linger about the long-term reliability of the material.

Ars Technica captured the rehabilitation arc most succinctly, writing that it turns out Orion’s much-maligned heat shield performed really well — a notable reversal for hardware that had spent two years as the public face of NASA’s schedule slips.

Astronauts weigh in

The crew themselves added a human dimension to the technical findings. According to WSLS, the Artemis II astronauts praised their moonship’s performance, singling out the heat shield for particular commendation. Their endorsement matters: Artemis II was the first time humans rode Orion around the Moon, and the reentry represented the single most dangerous phase of the mission, with the capsule hitting the atmosphere at roughly 25,000 miles per hour and enduring temperatures hot enough to melt steel.

Why it matters for Artemis III

The practical stakes extend well beyond one capsule. Artemis III, the mission intended to return astronauts to the lunar surface near the south pole, depends on Orion delivering crews safely home from the same high-energy reentry profile. A shield that behaves predictably — and whose behavior can be modeled with confidence — is the prerequisite for certifying the vehicle for repeated deep-space flights.

Still, the lingering questions raised by some outlets are not easily dismissed. Nine char-loss spots is a dramatic improvement, but it is not zero, and engineers will want to explain every irregularity before signing off on the more demanding trajectories that future missions may require. NASA has signaled it will continue analyzing the recovered material, publishing detailed data, and folding the results into the Artemis III flight rationale.

For now, the story is one of redemption for a piece of hardware that many outsiders had written off. A photograph taken by divers in the Pacific, followed by months of quiet measurement, has produced the most reassuring engineering verdict of the Artemis program to date — and a foundation on which the next lunar landing will be built.
